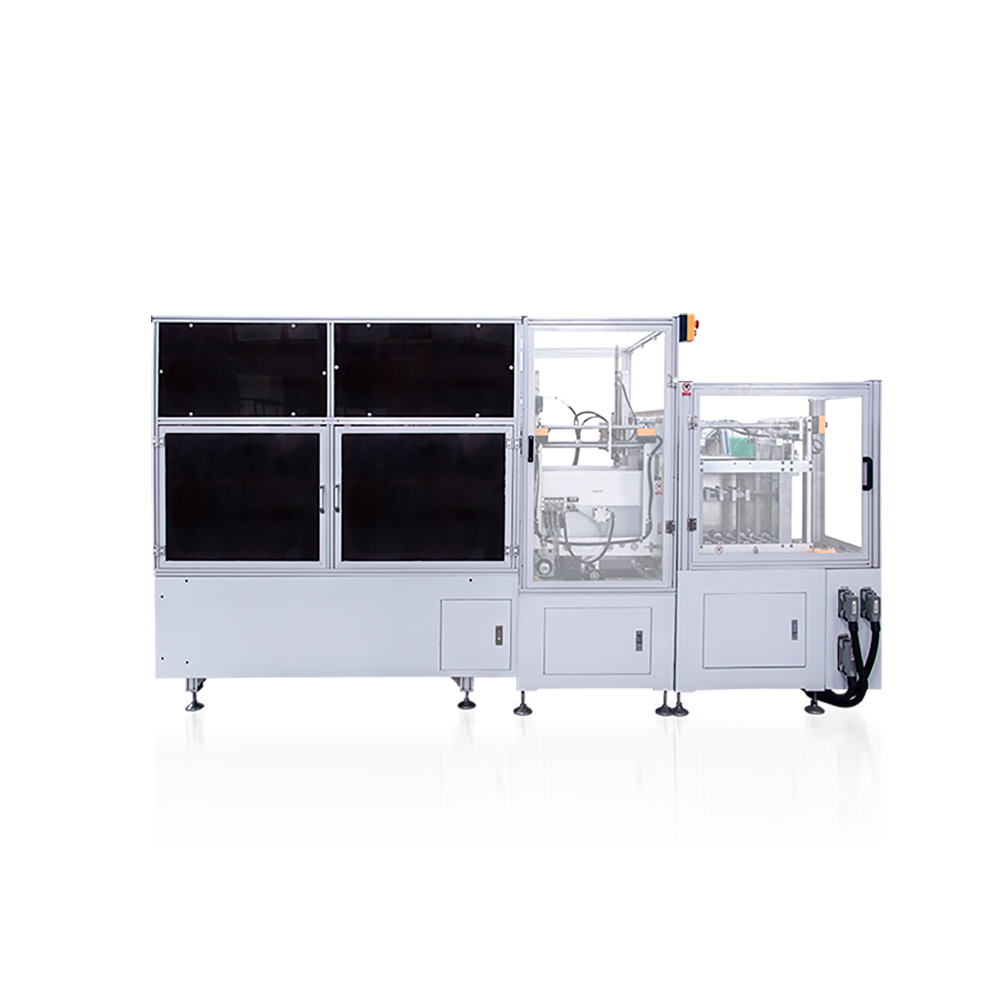

Board Book Stacking and Flat Pressing Machine is used to collect the mounted board book blocks, and then multi books stacking according to the setting, equipped with the turn-over device for the interleaving stacking, the stacked board book blocks with two streams, are sent to the pneumatic flat pressing station, the dual channel flat pressing device has six flat pressing plates on the top, so six book stacks can be pressed at the same time with heavy duty, the glue in the mounted board book blocks will get a thorough leveling without bulging or glue blank, ensure the quality of the board book, and keep the high efficiency of the production.
Automatic Board Book Block Collecting — collects mounted board book blocks for efficient stacking
Multi Books Stacking — stacks multiple books according to the setting
Turn-Over Device for Interleaving Stacking — ensures neat and stable stacking
Two-Stream Feeding to Pneumatic Flat Pressing — stacked blocks are sent to the pneumatic flat pressing station in two streams
Dual Channel Flat Pressing with Six Plates — six book stacks pressed at the same time with heavy duty
Thorough Glue Leveling — no bulging or glue blank for guaranteed board book quality
High Production Efficiency — ensures quality while keeping production efficient
Spezifikationen
Maximum Book Size
320×460mm
Minimum Book Size
100×180mm
Maximum Stacking Thickness
250mm
Minimum Stacking Thickness
100mm
Power
3kw
Fastest Speed
3000 books/h
Dimensions
1.5×6×1.7m
Compressed Air
400L/min 0.6Mpa
